SMB Male(Jack) Right Angle Rf Coaxial Connector For P.C.B Mount
Model Number: SMB-JWEH
Product description

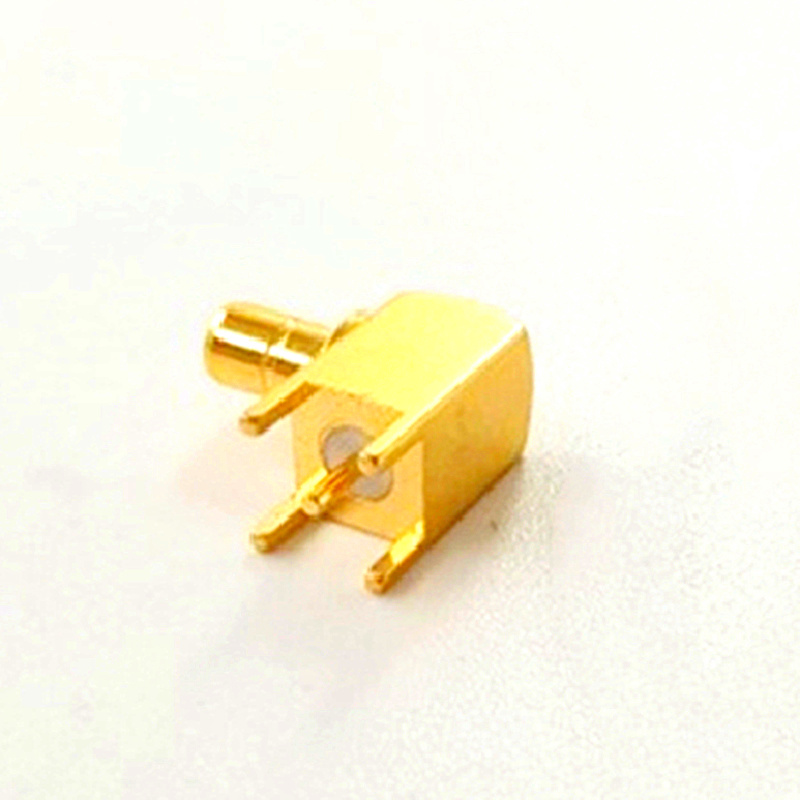

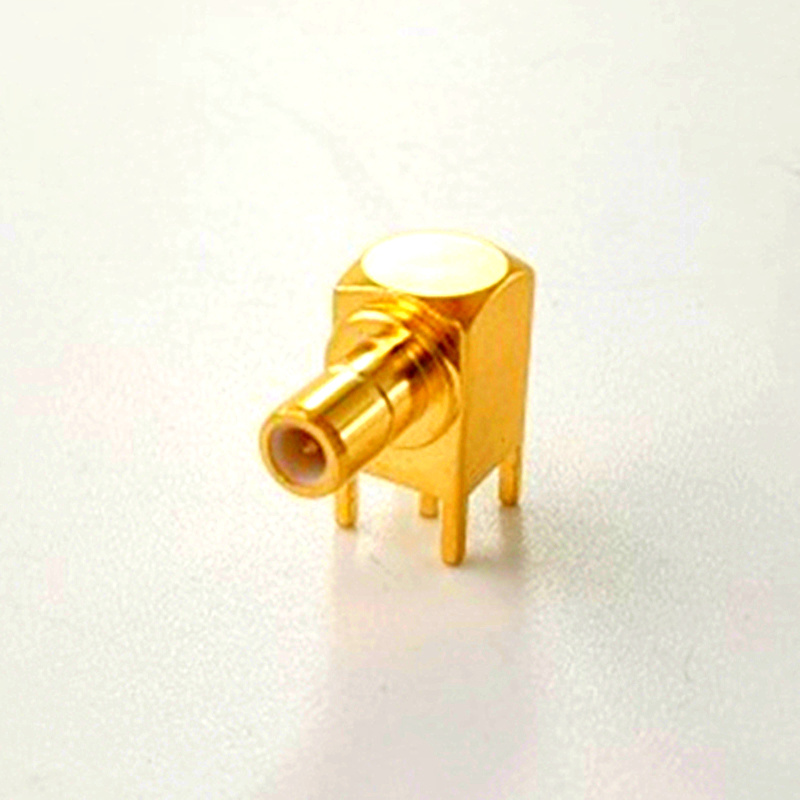

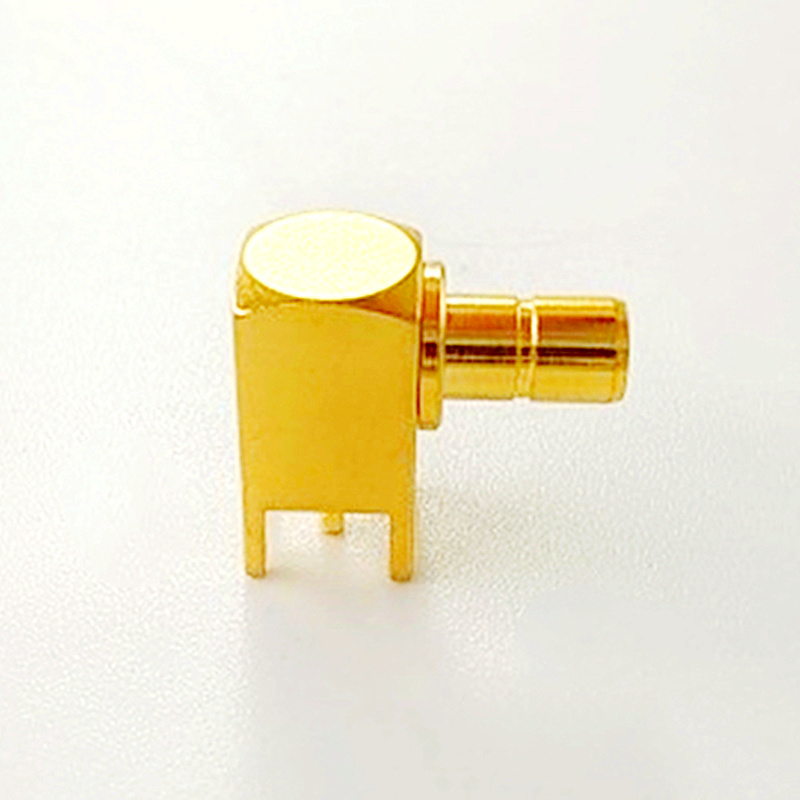

SMB Male(Jack) Right Angle Connector For P.C.B Mount
| Model No. | SMB-JWEH | |
| Interface | IEC 60169-10; CECC 22130 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-4GHz | |
| VSWR | ≤1.10 @DC-3GHz | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Working Voltage | ≤33500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Contact Resistance | Center Contact ≤6mΩ | Outer Contact ≤1mΩ |
| Durability | Mating cycles ≥500 | |
| Material an Plating | ||
| Parts Name | Material | Plating |
| Connector body | Brass | Au |
| Insulator | PTFE | — |
| Center conductor | Brass | Au |
| Coupling nut | Brass | Ni |
| Gasket | Silicone rubber | — |
| Environmental | ||
| Operating Temp. | -45～ 85 ℃ | |
| RoHs certificate | Compliants | |
